Power Running Board (PRB) Hinge: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: LH side shown, RH side similar.

NOTE: Support the running board with a jackstand.

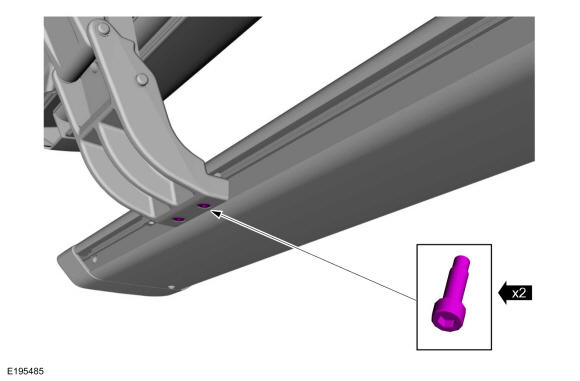

Remove the screws.

Courtesy of FORD MOTOR COMPANY

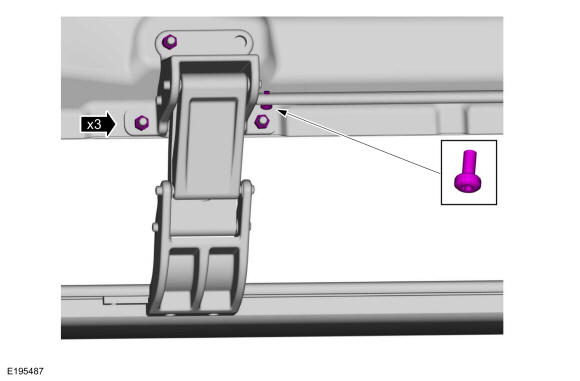

Remove the nuts and screw.
Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

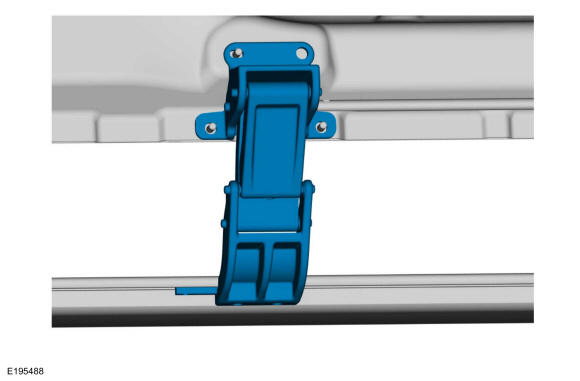

Disengage the torque rod and remove the bracket assembly.

Courtesy of FORD MOTOR COMPANY
