Power Running Board (PRB) Connecting Rod: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
- Remove the rear running board bracket. Refer to: Power Running Board (PRB) Hinge .

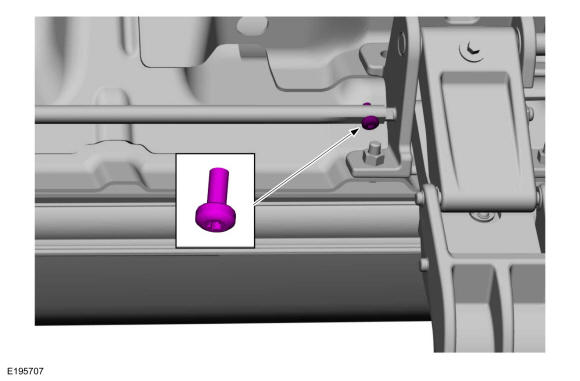

- Remove the screw.
Torque: 16 lb.ft (22 Nm)

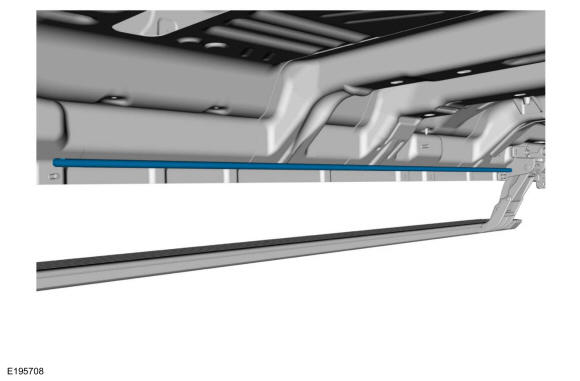

- Remove the connecting rod.
