Front Fender Moulding - F-450 F-550: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.
GFD410683Courtesy of FORD MOTOR COMPANY

Remove the push pins and the retainer.

GFD410684Courtesy of FORD MOTOR COMPANY

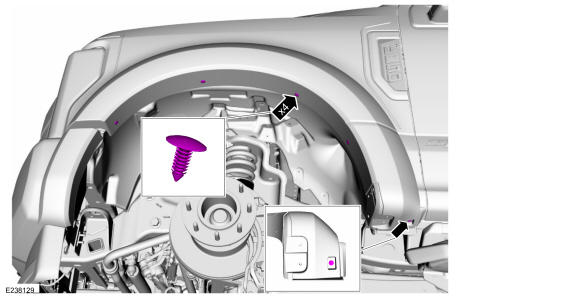

NOTE: Moulding attaches to 2 inner panels which are held on to the fender with the pushpin clips. When servicing the moulding assembly the inner panels are removed from the fender.

Using a non-marring trim tool, disengage the trim clips and remove the front fender moulding.

GFD410685Courtesy of FORD MOTOR COMPANY
