Bodyside Moulding: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The following steps detail the various bodyside mouldings located on the cab and pickup bed. It is not all inclusive as trim levels may vary from vehicle to vehicle.
NOTE:
LH side views shown, RH side similar.
Cab Upper Moulding

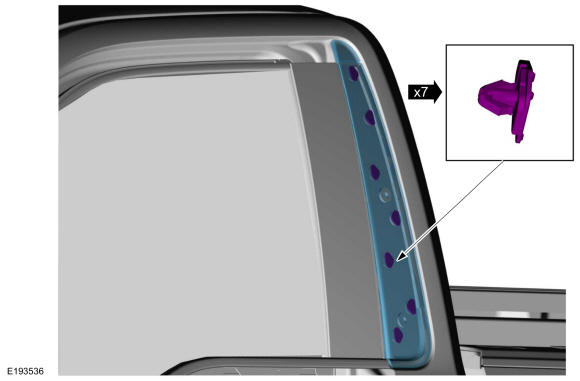

- Using a non-marring trim tool, detach the push pin retainers and remove the moulding.
Cab Lower Moulding

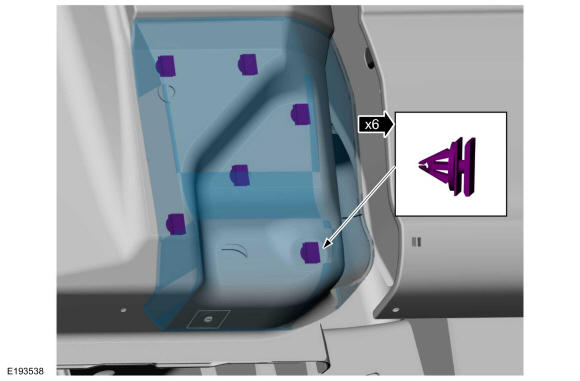

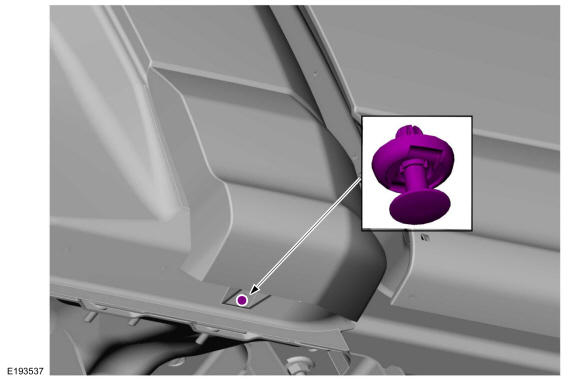

- Remove the push pin from the lower cab corner moulding.
- Using a non-marring trim tool, detach the push pin retainers and remove the lower cab corner moulding.
Pickup Bed Lower Moulding

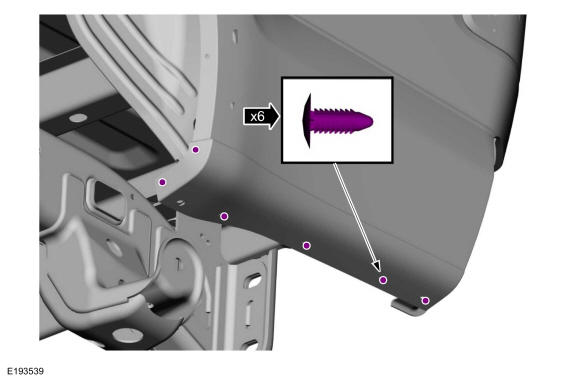

- Remove the push pin retainers.

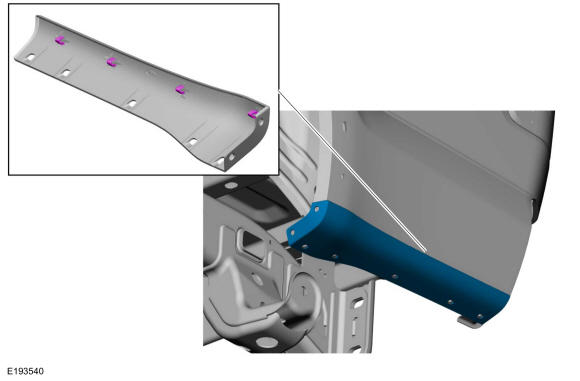

- Using a non-marring trim tool, detach the retainers from pick up bed and remove the moulding.
Pickup Bed Upper Rail Moulding

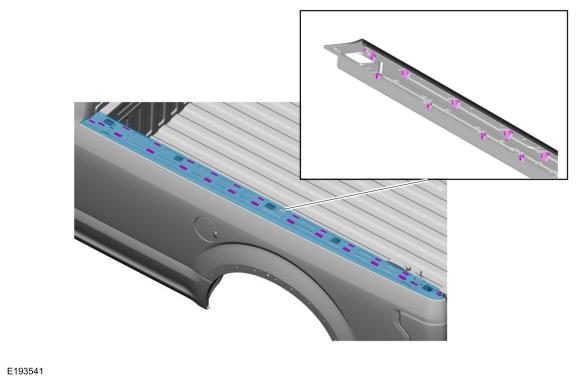

- Using a non-marring trim tool, carefully detach the retainers along the length of the moulding and remove the moulding.
