Turbocharger Actuator: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Do not use the retaining bolt to draw the turbocharger actuator into the housing or damage to the actuator can occur.
- Remove the upper intake manifold. Refer to: Upper Intake Manifold .

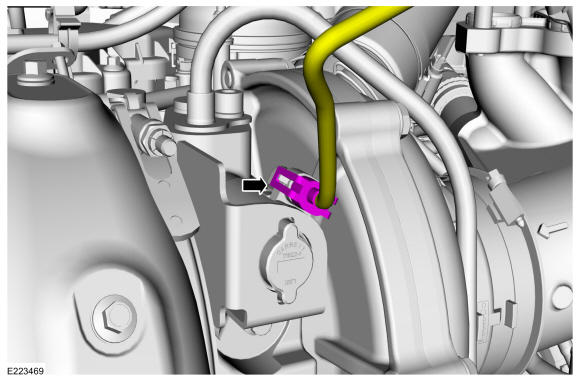

- Disconnect the TC actuator electrical connector.

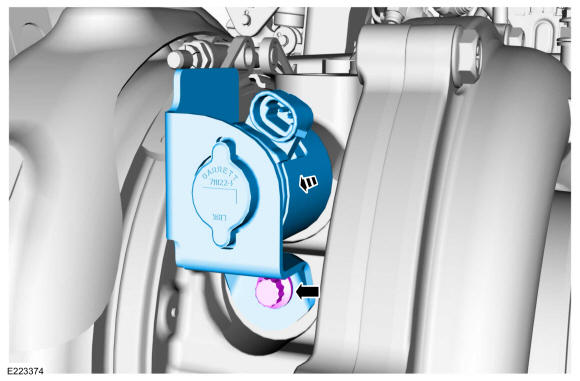

- Remove the bolt and the TC actuator.
Torque: 18 lb.ft (24 Nm)
