Mass Air Flow (MAF) Sensor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

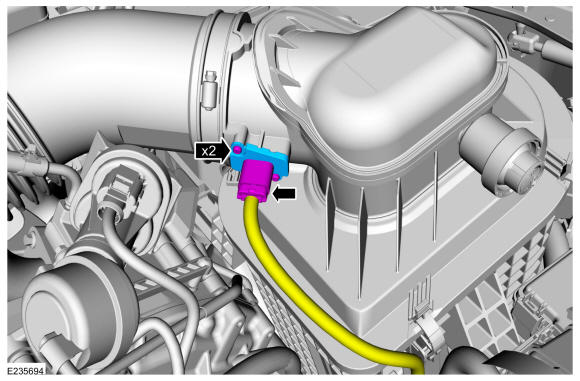

  1. Disconnect the MAF electrical connector. Remove the 2 screws and the MAF sensor.

    Torque: 18 lb.in (2 Nm)

GFD408190Courtesy of FORD MOTOR COMPANY
