Engine Coolant Temperature (ECT) Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

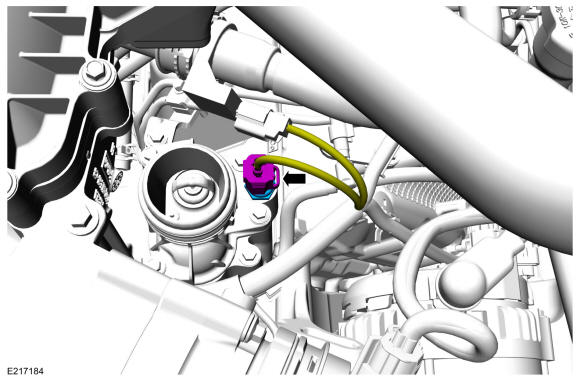

Engine Coolant Temperature (ECT) Sensor - Primary Cooling System
- Drain the cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING
- Disconnect the ECT primary cooling system sensor electrical connector. Remove the ECT primary cooling system sensor.
Torque: 20 lb.ft (27 Nm)

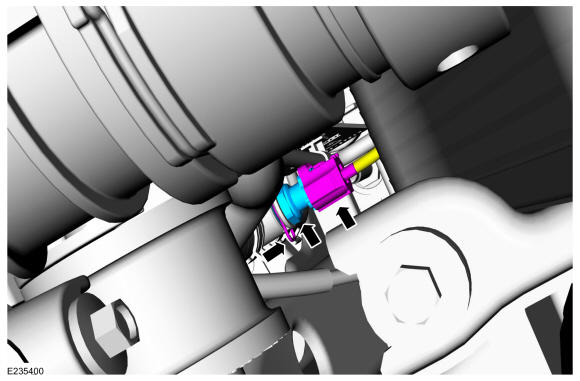

Engine Coolant Temperature (ECT) Sensor - Secondary Cooling System ECT2
- Drain the cooling system. Refer to: ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING
- Disconnect the ECT secondary cooling system (ECT2) sensor electrical connector and remove the sensor.
