Charge Air Cooler Temperature Sensor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

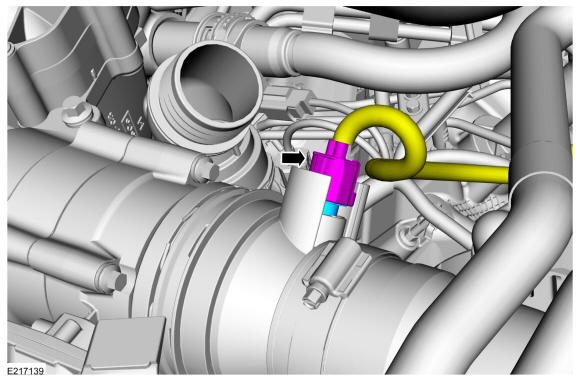

  1. Disconnect the charge air cooler temperature sensor electrical connector.
    GFD408170Courtesy of FORD MOTOR COMPANY

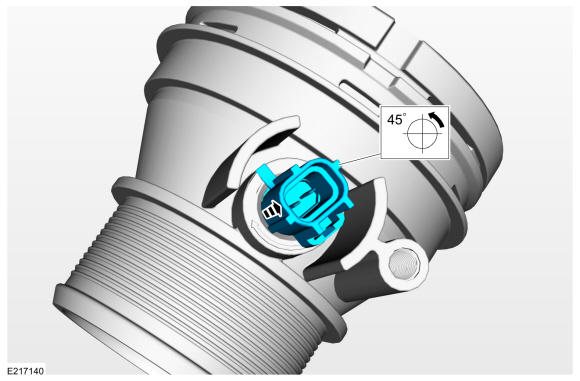

  2. Remove the charge air cooler temperature sensor.
GFD408171Courtesy of FORD MOTOR COMPANY
