Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

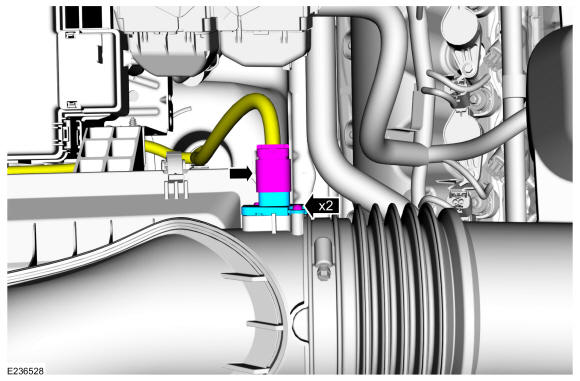

  1. Disconnect the electrical connector, remove the screws and the MAFT sensor.
GFD408216Courtesy of FORD MOTOR COMPANY
