Intake Manifold Runner Control (IMRC) Actuator: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Removal steps in this procedure may contain installation details.
Remove the air cleaner outlet pipe. Refer to: Intake Air Distribution and Filtering - Overview .

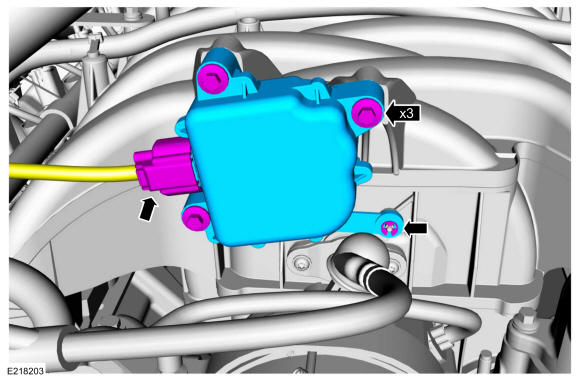

- Disconnect the electrical connector. Remove the clip, the bolts and the IMRC actuator.
Torque: 53 lb.in (6 Nm)
