Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

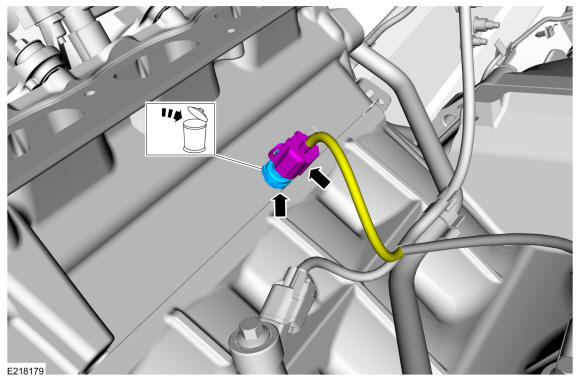

Disconnect the electrical connector, remove and discard the CHT sensor.
Torque: 89 lb.in (10 Nm)
