Electronic Engine Controls - Component Location
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty and 2019 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

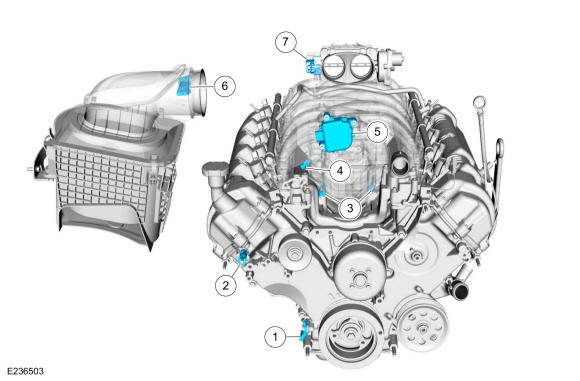

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | CKP sensor |
| 2 | CMP sensor |
| 3 | KS sensors |
| 4 | CHT sensor |
| 5 | IMRC actuator |
| 6 | MAFT sensor |
| 7 | Electronic Throttle Control (ECT) position sensor |

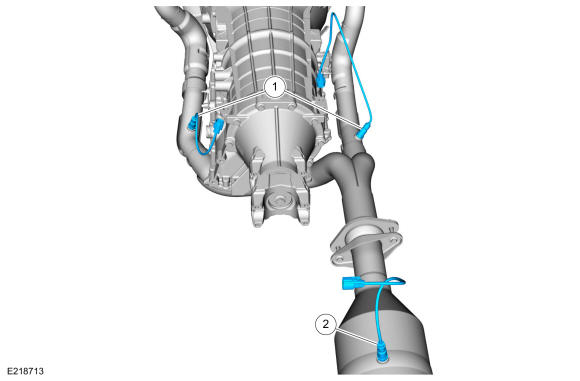

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | HO2S |
| 2 | Catalyst monitor sensor |
Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
