Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. Refer to: Valve Cover RH .

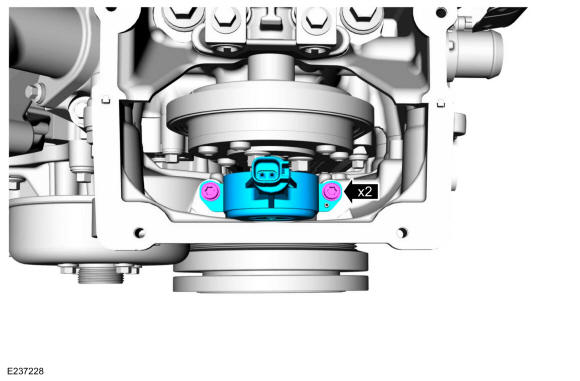

- Remove the bolts and the RH VCT oil control solenoid.
Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 30 deg.
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. Refer to: Valve Cover LH .

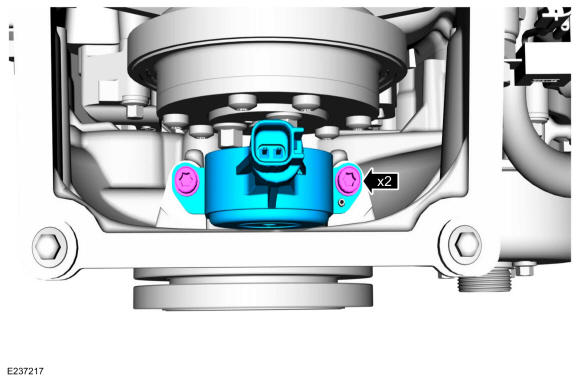

- Remove the bolts and the LH VCT oil control solenoid.
Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 30 deg.
