Knock Sensor (KS): Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-
NOTE: Note the position of the components before removal.

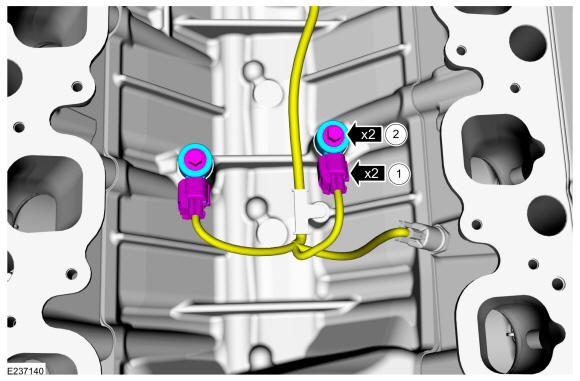

- Disconnect the KS electrical connectors.
- Remove the bolts and the KS.
Torque: 177 lb.in (20 Nm)
