Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

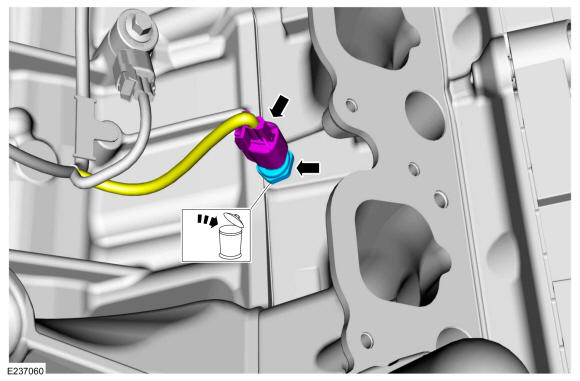

Disconnect the CHT sensor, remove and discard the CHT sensor.
Torque: 97 lb.in (11 Nm)
