Clutch Pedal Position (CPP) Switch: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

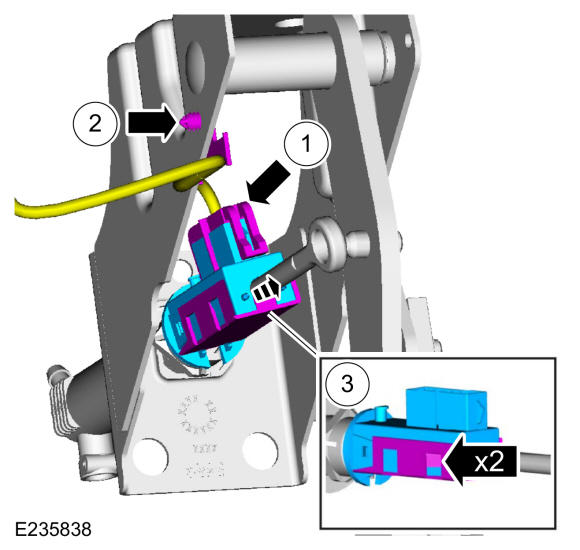

Remove the CPP switch.
1. Disconnect the CPP switch electrical connector.
2. Remove the wiring harness retainer and position aside the wiring harness.
3. Pull outward the CPP switch, release the clips and remove the CPP switch cover. Remove the CPP switch from the clutch master cylinder push rod.

Courtesy of FORD MOTOR COMPANY
