Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .

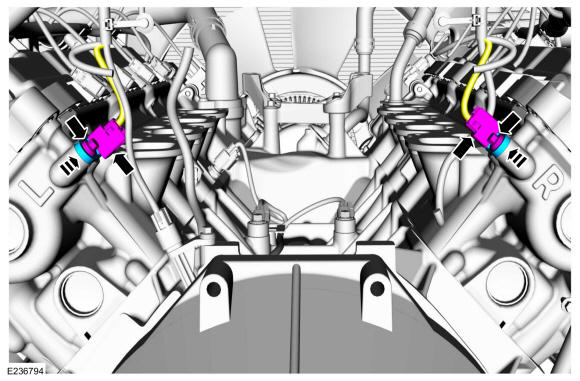

- Disconnect the electrical connector, remove the bolt and the CMP sensor.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque: 89 lb.in (10 Nm)
