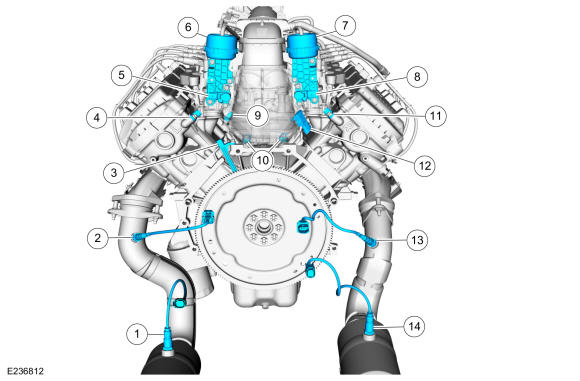

Electronic Engine Controls - Rear
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Catalyst monitor sensor |
| 2 |
HO2S |
| 3 |
CKP sensor |
| 4 |
Left hand CMP sensor |
| 5 |
Left hand IMRC position sensor |
| 6 |
Left hand IMRC actuator |
| 7 |
Right hand IMRC actuator |
| 8 |
Right hand IMRC position sensor |
| 9 |
CHT sensor |
| 10 |
KS |
| 11 |
Right hand CMP sensor |
| 12 |
MAP sensor |
| 13 |
HO2S |
| 14 |
Catalyst monitor sensor |
