Rear Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Rear view cameras located in tailgate release handle
NOTE:
Coaxial camera network camera shown, non-coaxial camera is similar.
- Remove the tailgate release handle. Refer to: Tailgate Release Handle .

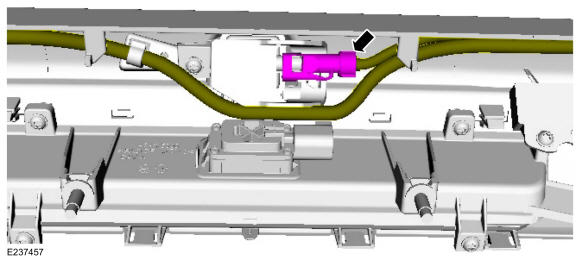

- Disconnect the camera connector.

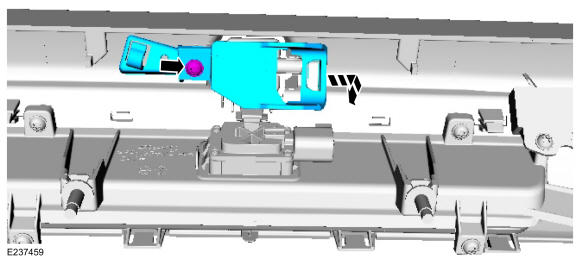

- Remove the screw and the camera bracket.

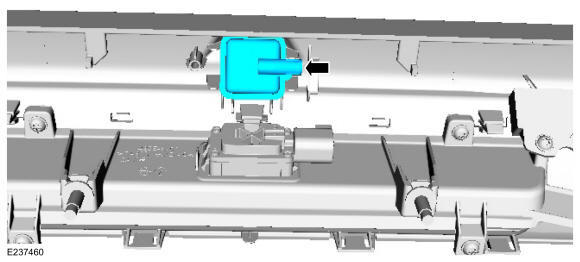

- Remove the rear view camera.
Center high mounted stop lamp (CHMSL) mounted camera
- Remove the center high mounted stop lamp (CHMSL). Refer to: High Mounted Stoplamp .

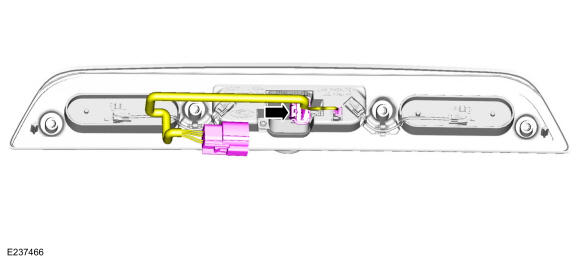

- Disconnect the CHMSL mounted camera electrical connector.

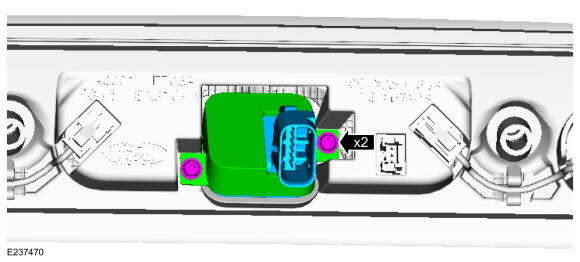

- Remove the screws, the camera bracket and the CHMSL mounted camera.
