Image Processing Module B (IPMB): Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

All vehicles

NOTE: If installing a new IPMB, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new IPMB after installation.

Using a diagnostic scan tool, begin the PMI process for the IPMB following the onscreen instructions.
Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) . Refer to: Front Controls Interface Module (FCIM) .
Vehicles not equipped with coaxial camera network

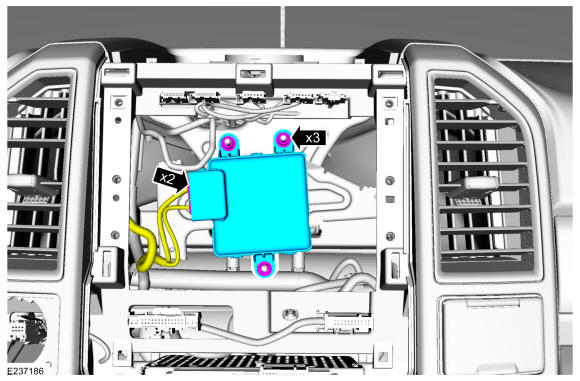

Remove the nuts, disconnect the electrical connectors and remove the IPMB.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with coaxial camera network
Remove the bolts, disconnect the electrical connectors and remove the IPMB.

Courtesy of FORD MOTOR COMPANY
