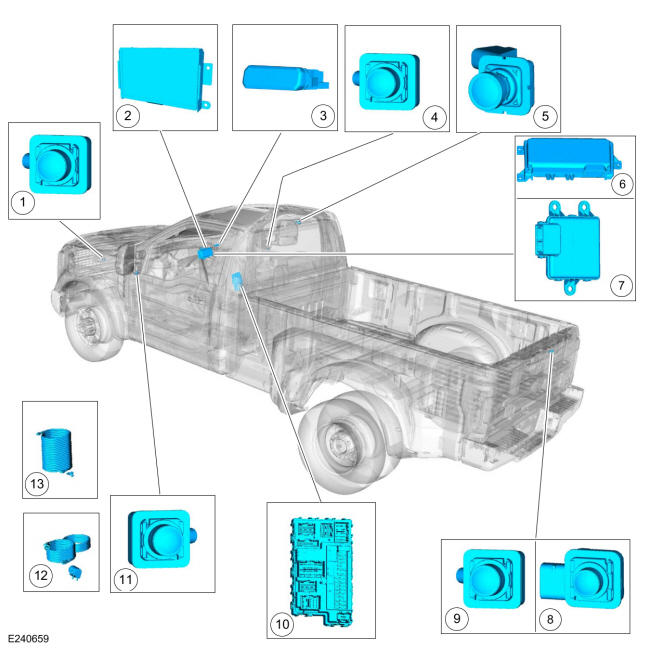

Component Location - Parking Aid Camera
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Front parking aid camera (360 degree view camera system) |
| 2 | Centerstack infotainment display |
| 3 | Camera selection switch |
| 4 | RH side parking aid camera (360 degree view camera system) |
| 5 | Center High Mount Stop Lamp (CHMSL) camera |
| 6 | IPMB (3 or more camera systems) |
| 7 | IPMB (2 camera system) |
| 8 | Rear parking aid camera (rear only and 2 camera systems) |
| 9 | Rear parking aid camera (3 or more camera systems) |
| 10 | BCM (rear only parking aid camera system) |
| 11 | LH side parking aid camera (360 degree view camera system) |
| 12 | Trailer camera |
| 13 | Upfitter camera (rear only parking aid camera system) |
