Steering Wheel Multifunction Switch: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
High series shown, others similar.
- Remove the driver airbag. Refer to: Driver Airbag .
-

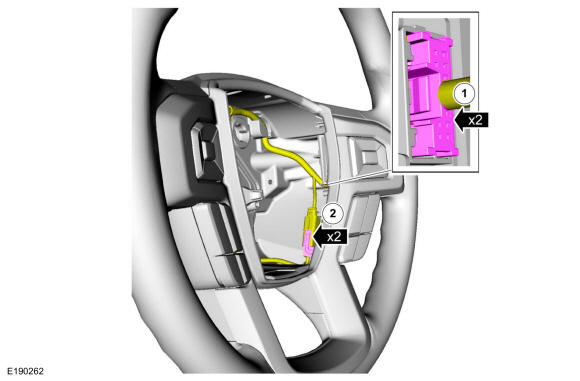

- On both sides, disconnect the electrical connector.
- On both sides, detach the wire harness from the bezel.

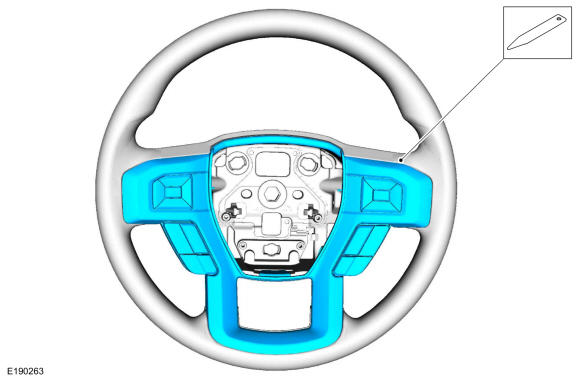

- Using a suitable flat-bladed tool, remove the steering wheel switch bezel.

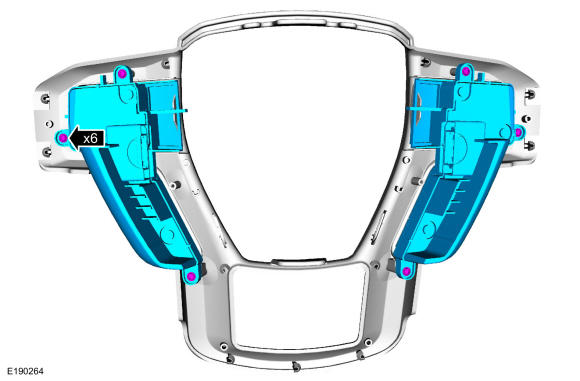

- Remove the screws and the steering wheel multifunction switches.
