Ignition Switch - Vehicles With: Keyless Vehicle System: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

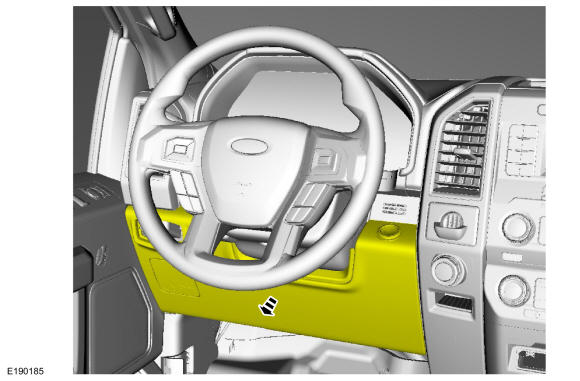

  1. Lower the steering column opening trim panel.
    GFD405475Courtesy of FORD MOTOR COMPANY

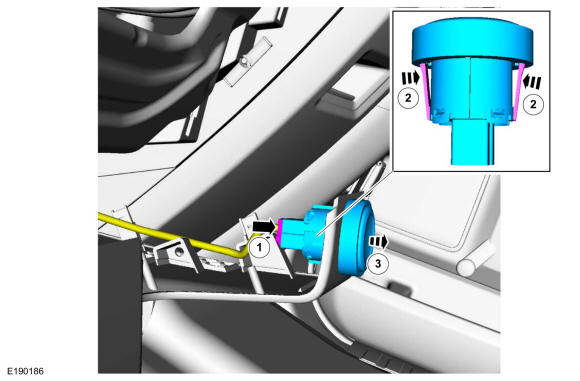

  2. Remove the start/stop switch.

    1. Disconnect the start/stop switch electrical connector.
    2. Release the start/stop switch tabs.
    3. Push the start/stop switch out of the steering column opening trim panel.

GFD405533Courtesy of FORD MOTOR COMPANY
