Heated Steering Wheel Module (HSWM): Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current HSWM installed. If the current HSWM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the HSWM following the on-screen instructions.
Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

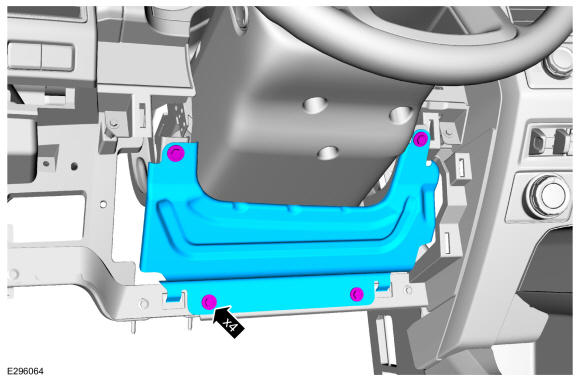

Remove the retainers and the steering column opening trim panel and reinforcement.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

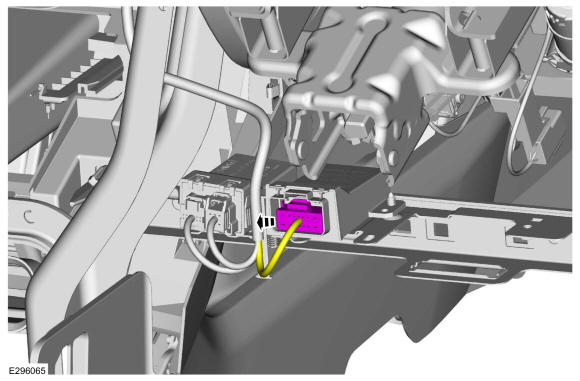

Disconnect the HSWM electrical connector.

Courtesy of FORD MOTOR COMPANY

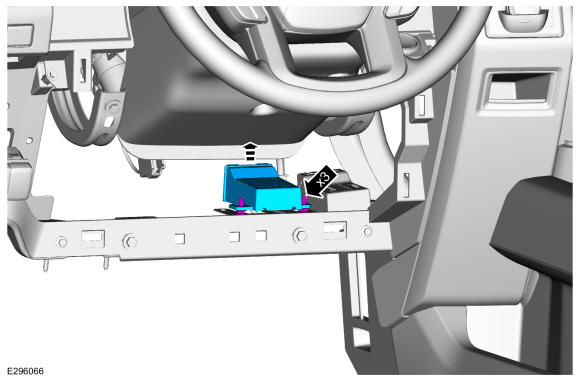

Remove the HSWM.

Courtesy of FORD MOTOR COMPANY
