Front Seat: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

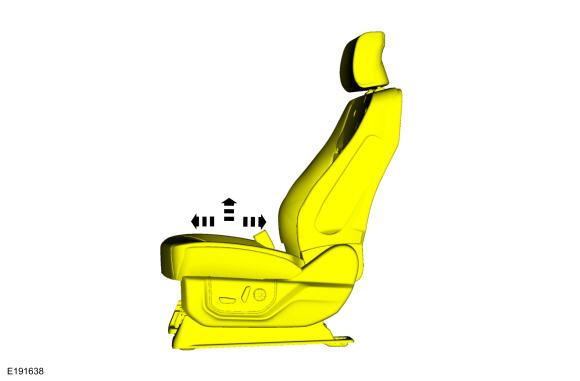

  1. Position the seat to access the front seat bolts.

    • If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seats .

    GFD410850Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  3. Disconnect the seat harness electrical connector(s).

    1. Detach the wiring harness from the pin-type retainer.
    2. Release the locking tab(s) and rotate the position assurance lever(s).

    GFD410851Courtesy of FORD MOTOR COMPANY

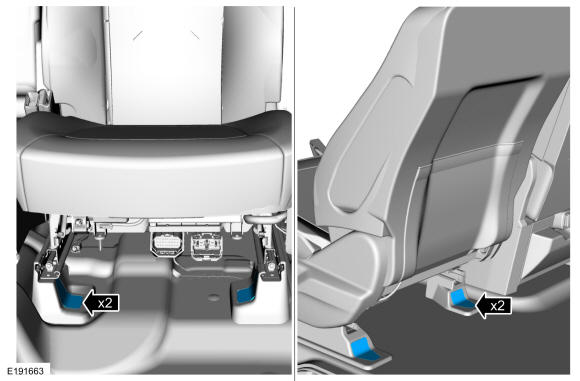

  4. Remove the front seat bolt caps.
    GFD410852Courtesy of FORD MOTOR COMPANY
  5. NOTE: Follow the unique instructions or graphics for this step in the installation.

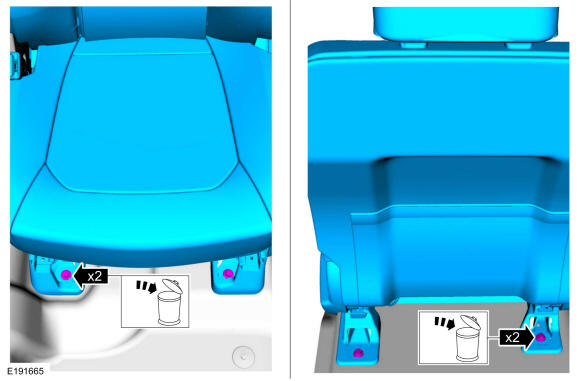

    Remove the front seat.

    • Remove and discard the front seat bolts.

GFD410853Courtesy of FORD MOTOR COMPANY
