Front Seat: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
Install the front seat bolts in the following sequence.
1. Install the front inboard bolt.
  Torque:

  35 lb.ft (47 Nm)
2. Install the front outboard bolt.
  Torque:

  35 lb.ft (47 Nm)
3. Install the rear outboard bolt.
  Torque:

  35 lb.ft (47 Nm)
4. Install the rear inboard bolt.
  Torque:

  35 lb.ft (47 Nm)

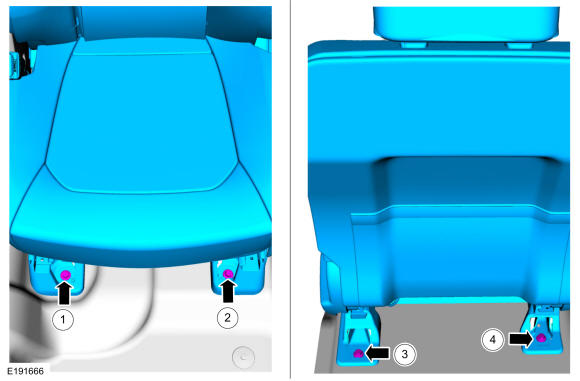

Fig 1: Front Seat Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
