Front Seat Track Motor: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

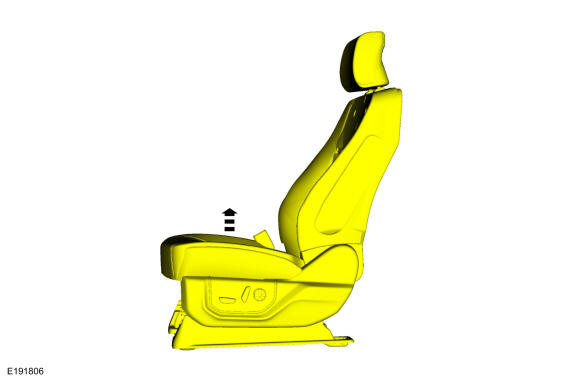

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

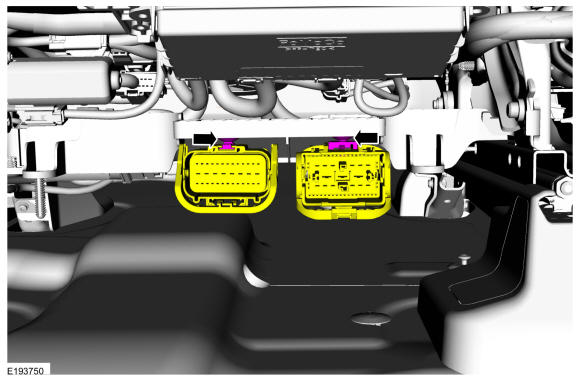

Disconnect the seat harness electrical connector(s).

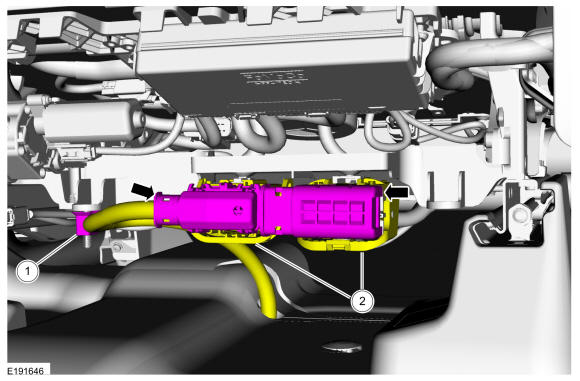

1. Detach the wiring harness from the pin-type retainer.
2. Release the locking tab(s) and rotate the position assurance lever(s).
Courtesy of FORD MOTOR COMPANY
Detach the seat track wiring harness connector retainer(s) from the seat track motor bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: Seat track components are removed for clarity.

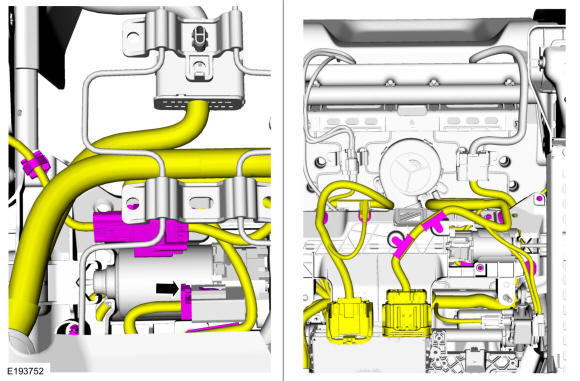

Disconnect the seat track motor electrical connector, detach the wiring harness retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Seat track components and wiring harnesses are removed for clarity.

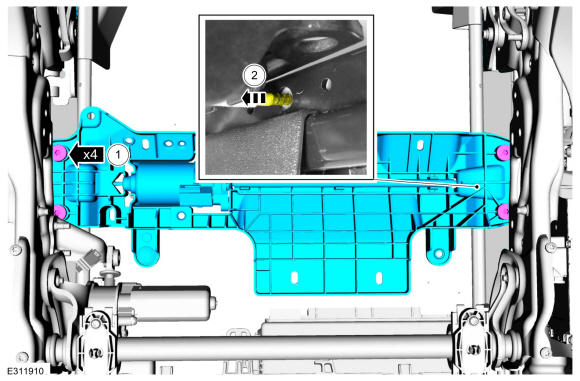

Remove the seat track motor.
1. Remove the bolts.
2. Position the long seat track motor drive cable out of the seat track gearbox.

Courtesy of FORD MOTOR COMPANY
