Front Seat Power Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

Regular Cab

Remove the front seat. Refer to: Front Seat .
Climate controlled seats
Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
Super Cab and Crew Cab seats without climate control
Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Seats without climate control

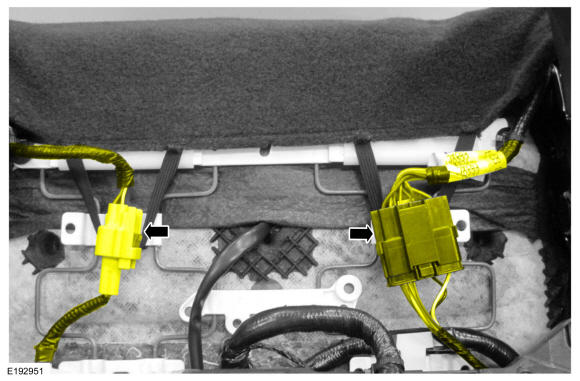

Detach the electrical connector retainers and position the wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY
Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
Detach the hook-and-loop retainer and position the backrest cover strap aside.

Courtesy of FORD MOTOR COMPANY
1. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

  Unzip the backrest cover zipper on each side.
2. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY

All Seats

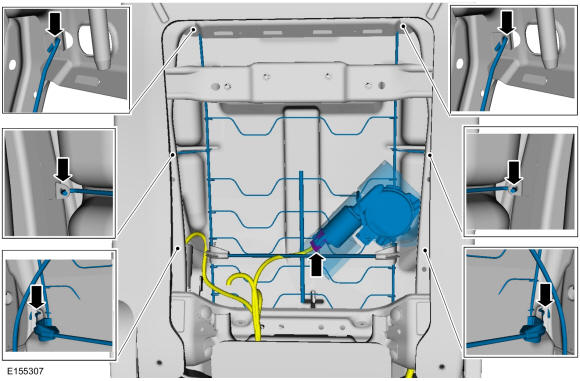

Disconnect the electrical connector, release the J-hooks, and remove the power lumbar assembly.

Courtesy of FORD MOTOR COMPANY
