Front Seat Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat .
  2. Adjust the manual lumbar to the fully relaxed position.
    GFD410861Courtesy of FORD MOTOR COMPANY

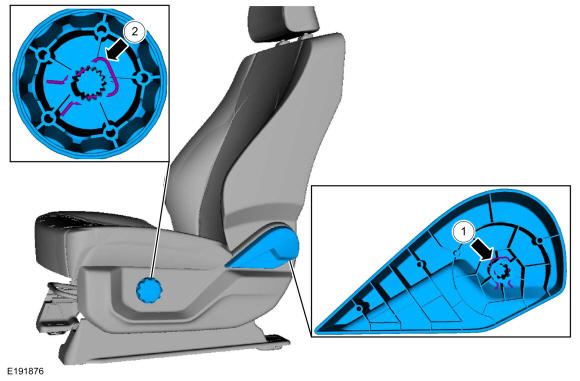

    1. Remove the clip and the recline handle.
    2. Remove the clip and the lumbar handle.
    GFD410862Courtesy of FORD MOTOR COMPANY

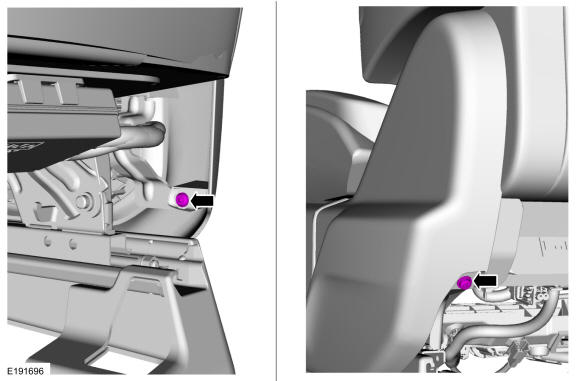

  4. Remove the side shield screws.
    GFD410863Courtesy of FORD MOTOR COMPANY

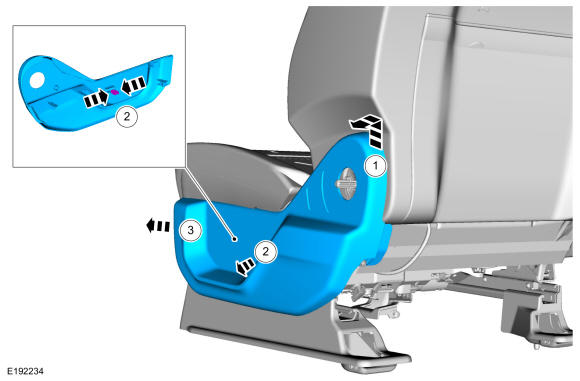

  5. NOTE: Side shield without manual lumbar shown, side shield with manual lumbar similar.

    Remove the side shield.

    1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
    2. From underneath, squeeze the retainers together and pull out on the side shield.
    3. Slide the side shield forward.

    GFD410864Courtesy of FORD MOTOR COMPANY

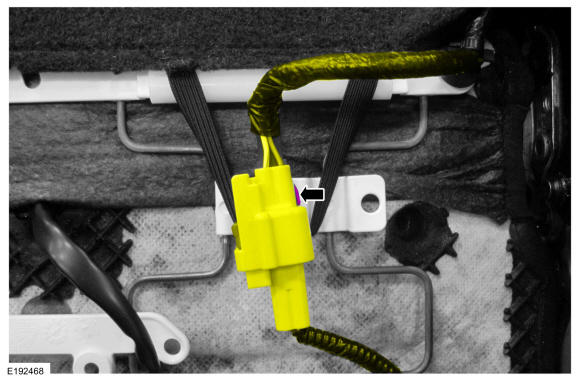

  6. Release the electrical connector retainer and position the side airbag wiring harness aside.
    GFD410894Courtesy of FORD MOTOR COMPANY

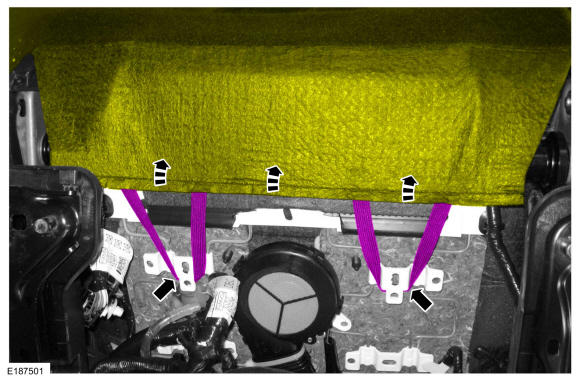

  7. Detach the backrest cover straps and position the backrest cover upward.
    GFD410895Courtesy of FORD MOTOR COMPANY

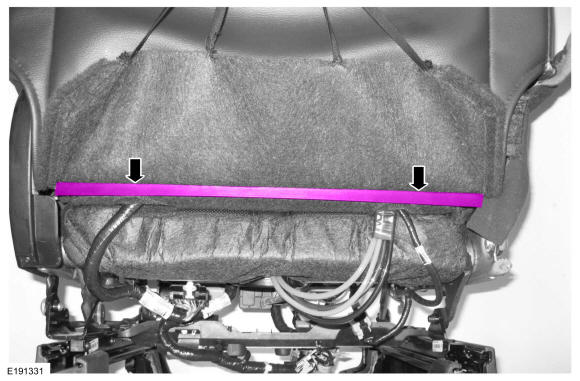

  8. Release the backrest cover lower J-clip.
    GFD410793Courtesy of FORD MOTOR COMPANY

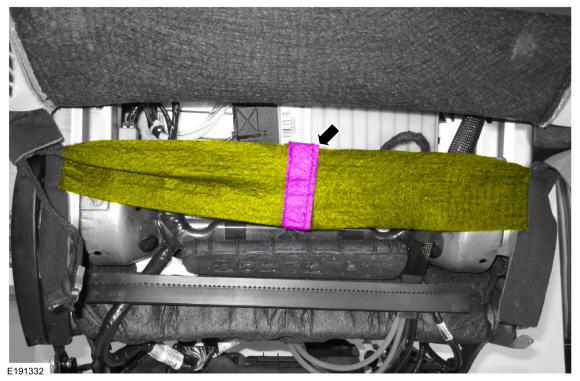

  9. Detach the hook-and-loop retainer and position the backrest cover strap aside.
    GFD410896Courtesy of FORD MOTOR COMPANY

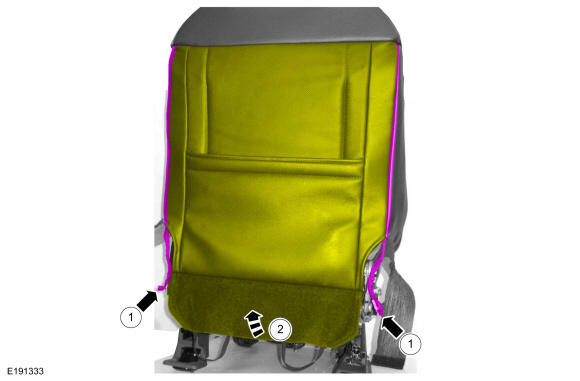

    1. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

      Unzip the backrest cover zipper on each side.

    2. Position the backrest cover upward.
    GFD410794Courtesy of FORD MOTOR COMPANY
  11. Position the lumbar assembly cable away from the seat track.

    • Disconnect the cable from the lumbar actuator.

    • Detach the cable retainers from the seat track.

    GFD410865Courtesy of FORD MOTOR COMPANY

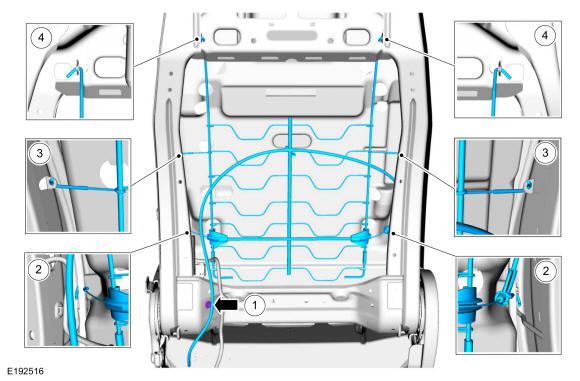

  12. Remove the lumbar assembly.

    1. Release the lumbar assembly cable retainer.
    2. Detach the lumbar assembly cable.
    3. Detach the lumbar assembly J-hooks.
    4. Detach the lumbar assembly upper J-hooks.

    GFD410897Courtesy of FORD MOTOR COMPANY

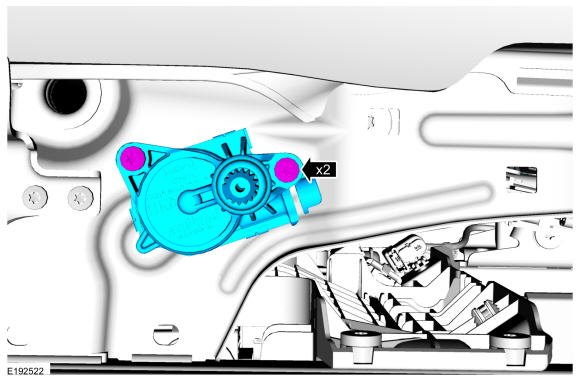

  13. If required. Remove the screws and the lumbar actuator.
GFD410898Courtesy of FORD MOTOR COMPANY
