Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
- Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .

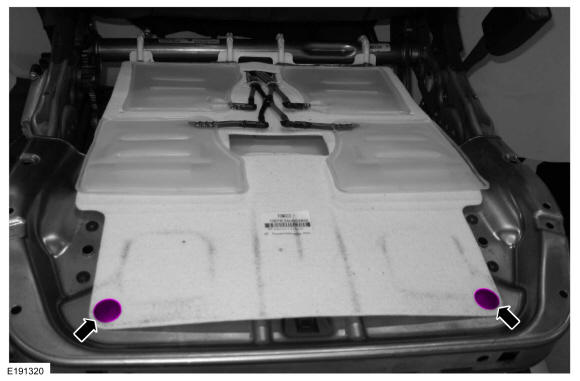

- Remove the seat cushion adjuster pin-type retainers.
- Remove the seat cushion adjuster and route out the hoses.
