Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. If equipped. Remove the clip and the recline handle.
    GFD410875Courtesy of FORD MOTOR COMPANY
  2. Remove the side shield screws.
    GFD410863Courtesy of FORD MOTOR COMPANY

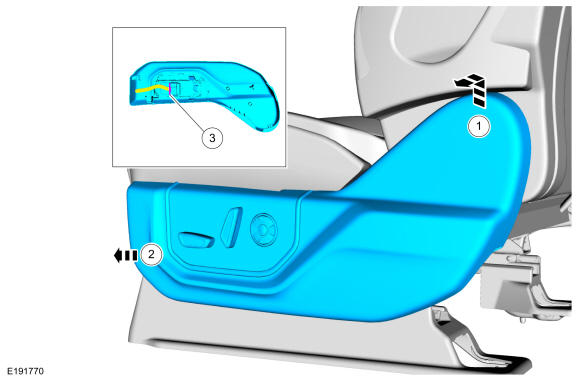

  3. NOTE: Side shield with power recline seat shown, all others similar.

    Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD410876Courtesy of FORD MOTOR COMPANY

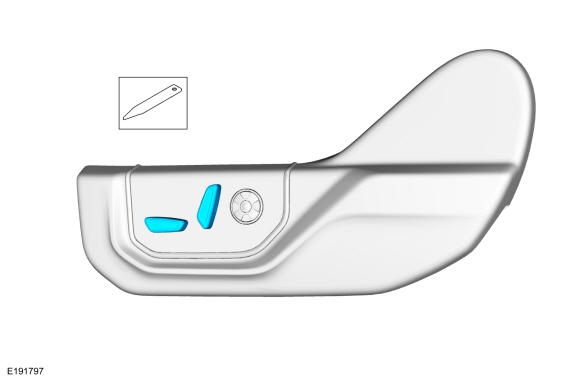

  4. Remove the seat control switch knob(s).
    GFD410877Courtesy of FORD MOTOR COMPANY

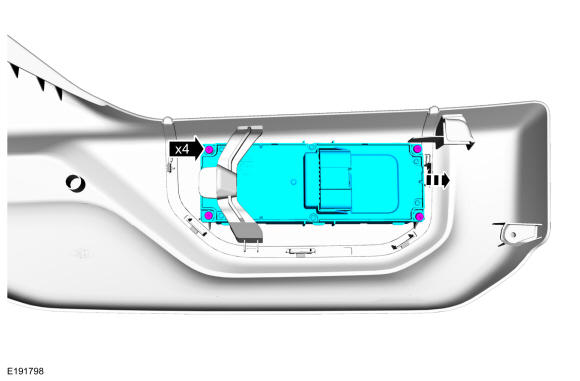

  5. Remove the screws and the seat control switch.
GFD410878Courtesy of FORD MOTOR COMPANY
