Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Typical head restraint guide sleeve shown, others similar.

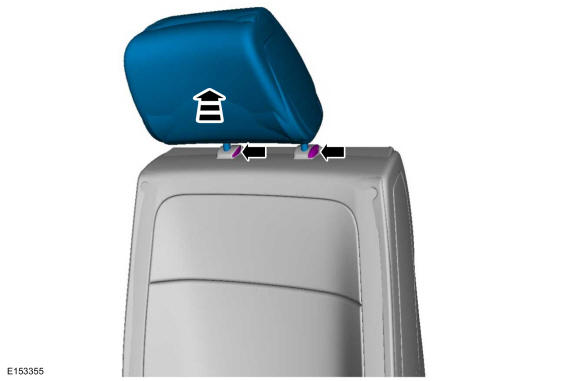

  1. Depress the locking tabs and remove the head restraint.
    GFD410845Courtesy of FORD MOTOR COMPANY

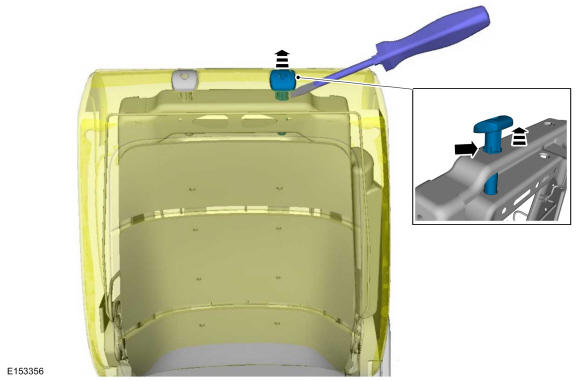

  2. Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
    GFD410846Courtesy of FORD MOTOR COMPANY

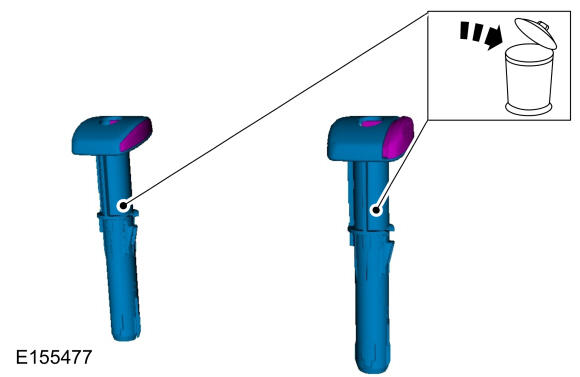

  3. Discard the head restraint guide sleeves.
GFD410847Courtesy of FORD MOTOR COMPANY
