Front Center Seat: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

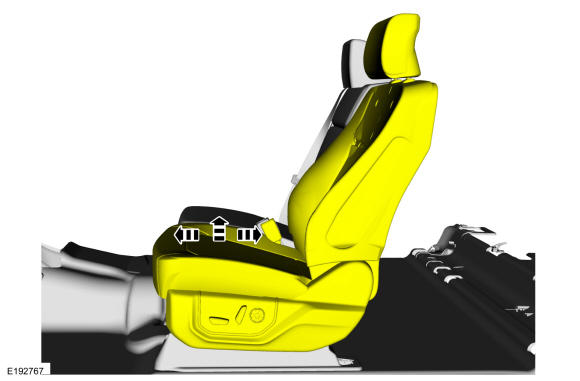

  1. Position the driver seat to access the seat LH bolts.
    GFD410798Courtesy of FORD MOTOR COMPANY
  2. Remove the passenger front seat. Refer to: Front Seat .

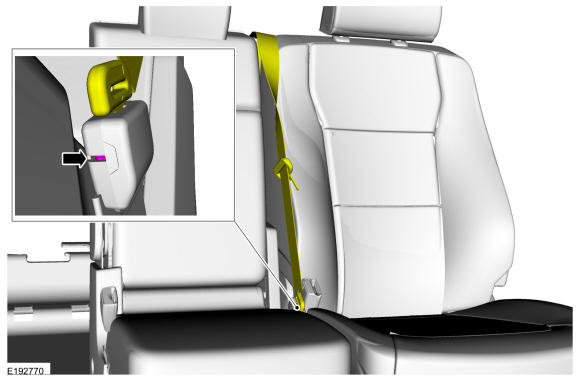

  3. If equipped. Press the locking tab and disconnect the seatbelt from the seatbelt anchor.
    GFD410799Courtesy of FORD MOTOR COMPANY

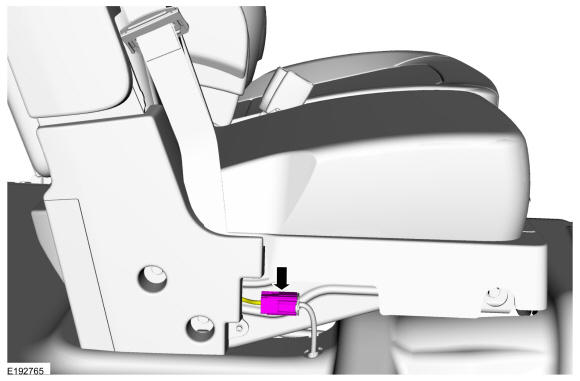

  4. If equipped. Disconnect the seat electrical connector.
    GFD410800Courtesy of FORD MOTOR COMPANY

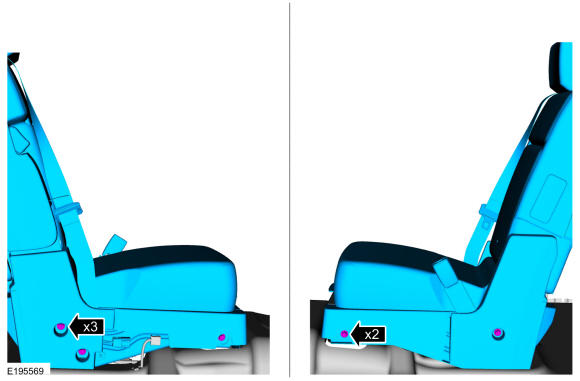

  5. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the bolts and the center seat.

    GFD410801Courtesy of FORD MOTOR COMPANY

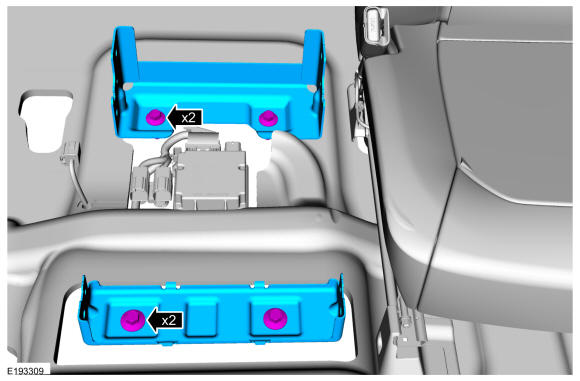

  6. If required. Remove the bolts and the front center seat brackets.

    Torque:

    41 lb.ft (55 Nm)

GFD410802Courtesy of FORD MOTOR COMPANY
