Front Center Seat: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
Install the center seat bolts in the following sequence.
1. Install the RH center bolt.
  Torque:

  41 lb.ft (55 Nm)
2. Install the RH rear bolt.
  Torque:

  41 lb.ft (55 Nm)
3. Install the RH front bolt.
  Torque:

  41 lb.ft (55 Nm)
4. Install the LH rear bolt.
  Torque:

  41 lb.ft (55 Nm)
5. Install the LH front bolt.
  Torque:

  41 lb.ft (55 Nm)

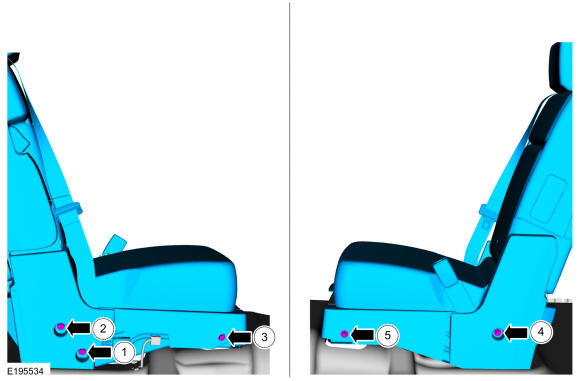

Fig 1: Center Seat Bolts Tightening Sequence

Courtesy of FORD MOTOR COMPANY
