Front Center Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .
  2. Lift the seat cushion.

    1. Release the seat cushion latch.
    2. Lift the seat cushion.

    GFD410818Courtesy of FORD MOTOR COMPANY
  3. Remove the cup holder.
    GFD410819Courtesy of FORD MOTOR COMPANY
  4. Remove screws and the seat storage tray.
    GFD410820Courtesy of FORD MOTOR COMPANY
  5. Position the seat cushion down.
    GFD410821Courtesy of FORD MOTOR COMPANY
  6. Release the seat latch and fold the seat backrest down.
    GFD410822Courtesy of FORD MOTOR COMPANY

    Regular Cab

  7. Remove the backrest latch cover.
    GFD410823Courtesy of FORD MOTOR COMPANY
  8. Remove the screws, release the retaining clip and remove the RH side shield.
    GFD410824Courtesy of FORD MOTOR COMPANY
  9. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD410825Courtesy of FORD MOTOR COMPANY
  10. Release the seat latch and raise the seat backrest up.
    GFD410826Courtesy of FORD MOTOR COMPANY

    Super Cab and Crew Cab

  11. Remove the rear cup holder assembly.

    1. Release the rear cup holder retainers.
    2. Disconnect the auxiliary power point electrical connector.

    GFD410809Courtesy of FORD MOTOR COMPANY
  12. If equipped. Lift the armrest storage compartment lid.
    GFD410810Courtesy of FORD MOTOR COMPANY
  13. Remove the backrest latch cover.
    GFD410811Courtesy of FORD MOTOR COMPANY
  14. Remove the screws, release the retaining clip and remove the RH side shields.
    GFD410813Courtesy of FORD MOTOR COMPANY
  15. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD410814Courtesy of FORD MOTOR COMPANY
  16. Release the seat latch and raise the seat backrest up.
    GFD410815Courtesy of FORD MOTOR COMPANY

    All vehicles

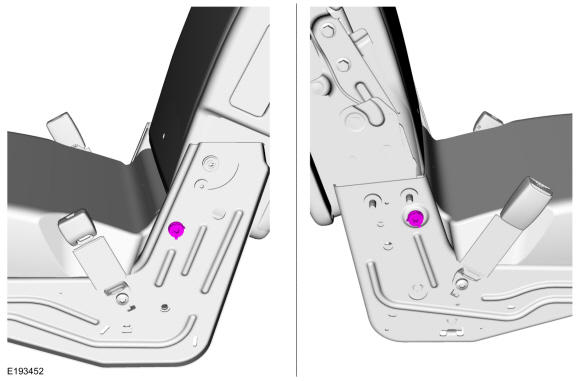

  17. Remove the seat cushion pivot bolts.

    Torque:

    26 lb.ft (35 Nm)

    GFD410838Courtesy of FORD MOTOR COMPANY

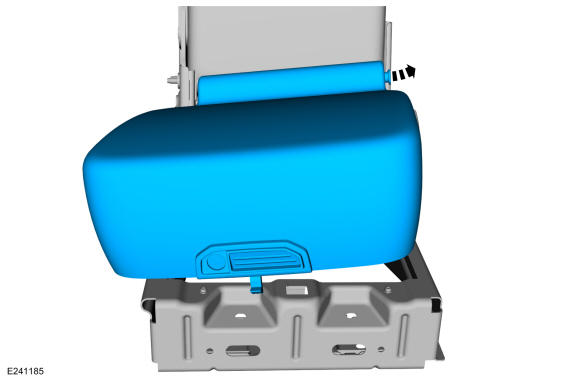

  18. Release the LH side of the seat cushion from the seat cushion base and remove the seat cushion.
    GFD410839Courtesy of FORD MOTOR COMPANY

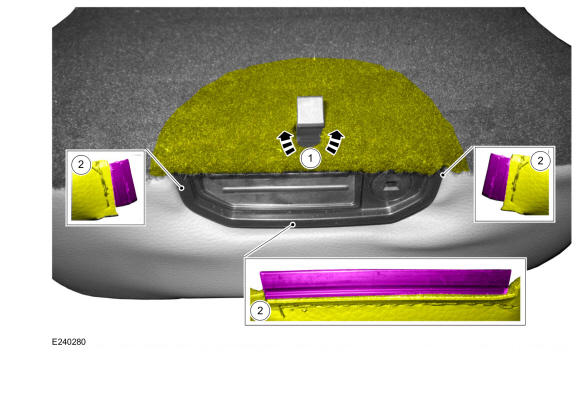

    1. Lift the cushion cover over the seat cushion latch catch.
    2. Detach the cushion cover tabs.
    GFD410840Courtesy of FORD MOTOR COMPANY

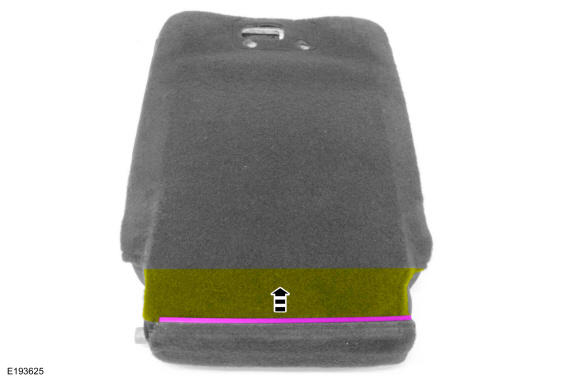

  20. Release the J-hook and position the cushion cover upward.
    GFD410841Courtesy of FORD MOTOR COMPANY

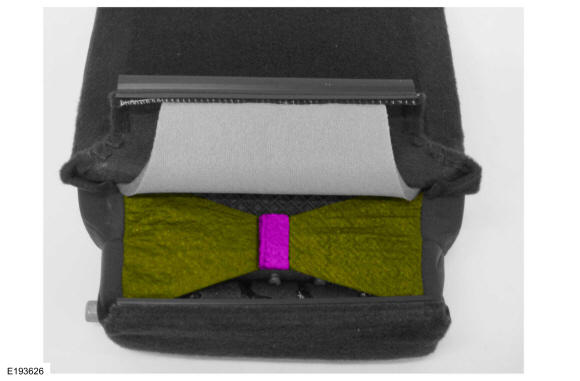

  21. Release the hook-and-loop retainer and position the cushion cover strap aside.
    GFD410842Courtesy of FORD MOTOR COMPANY

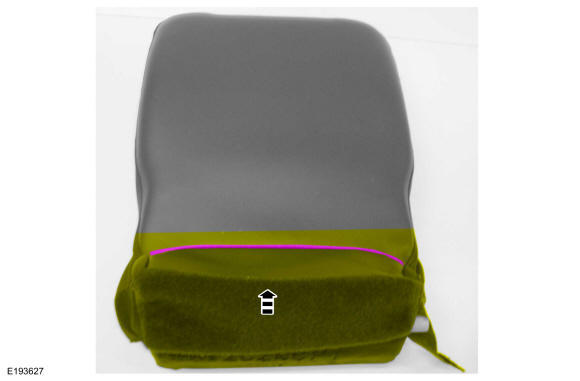

  22. NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat cushion foam pad.

    Release the hook-and-loop strip and position the cushion cover upward.

    GFD410843Courtesy of FORD MOTOR COMPANY

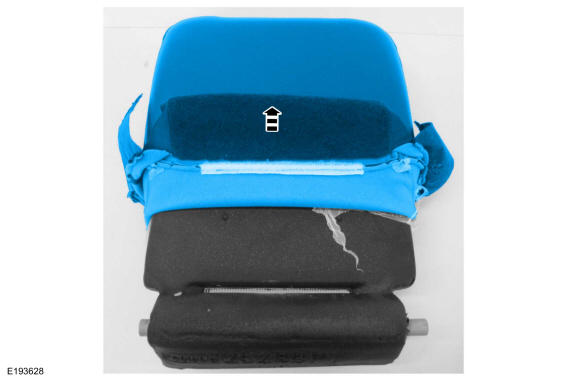

  23. Remove the cushion cover.
GFD410844Courtesy of FORD MOTOR COMPANY
