Tailgate Lock Cylinder: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Repair the tailgate lock cylinder by discarding the inoperative tailgate lock cylinder and building a new tailgate lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys.
- Remove the tailgate release handle. Refer to: Tailgate Release Handle .
-
NOTE: This step is only necessary when installing a new component.

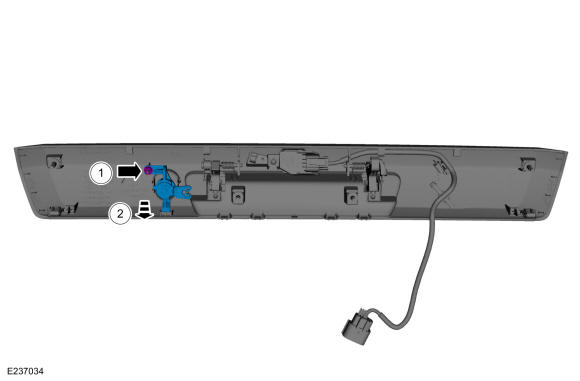

Remove the tailgate lock cylinder.
- Remove the tailgate lock cylinder nut.
Torque: 28 lb.in (3.2 Nm)
- Remove the tailgate lock cylinder.
- Remove the tailgate lock cylinder nut.
