Tailgate Latch: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

Open the tailgate.

Courtesy of FORD MOTOR COMPANY

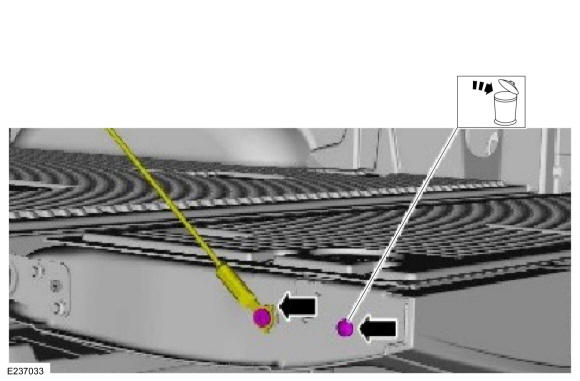

Remove the tailgate latch bolts and discard upper tailgate latch bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

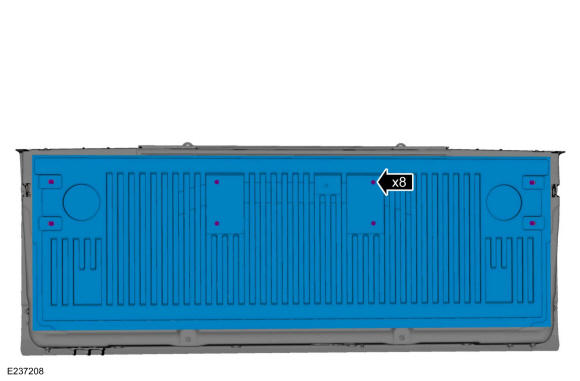

If equipped. Remove the bedliner tailgate cover.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

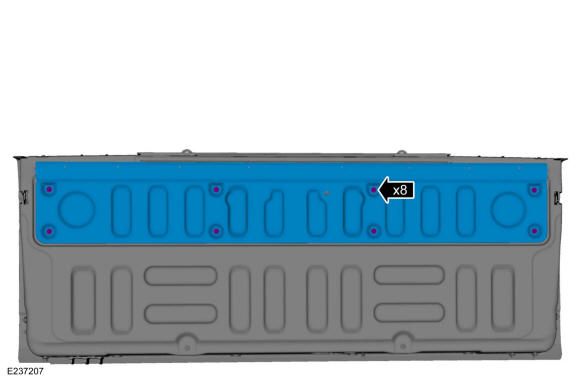

Remove the tailgate access panel bolts and the tailgate access panel.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

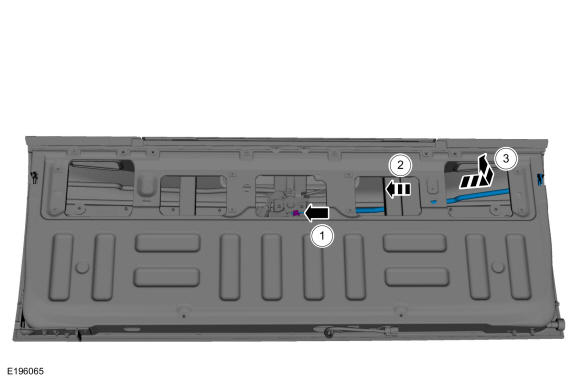

Remove the tailgate latch.
1. Disconnect the tailgate latch actuating rod from the tailgate latch control assembly.
2. Position the latch assembly toward the tailgate latch control assembly.
3. Remove the tailgate latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the tailgate latch actuating rod.

Courtesy of FORD MOTOR COMPANY
