Rear Door Lower Latch - Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - Super Cab .
Remove the watershield.

Courtesy of FORD MOTOR COMPANY
Remove the interior rear door handle. Refer to: Interior Rear Door Handle - Super Cab .
Remove the rear door lower latch bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

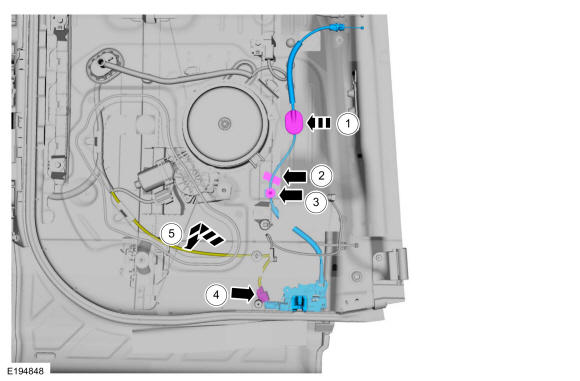

Remove the rear door lower latch.
1. Route the cable and grommet through the inner door.
2. Detach the tape.
3. Release the cable routing clip.
4. Disconnect the rear door ajar switch.
5. Remove the rear door lower latch.

Courtesy of FORD MOTOR COMPANY
