Keyless Entry Rear Antenna: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. Refer to: Tailgate Release Handle .

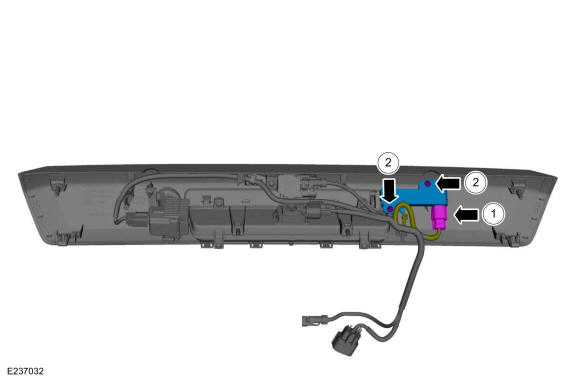

  2. Remove the keyless entry rear antenna.

    1. Disconnect the electrical connector from the keyless entry rear antenna.
    2. Remove the screws and the keyless entry rear antenna.

GFD411188Courtesy of FORD MOTOR COMPANY
