Hood Latch Release Handle: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Regular cab shown, all others similar.

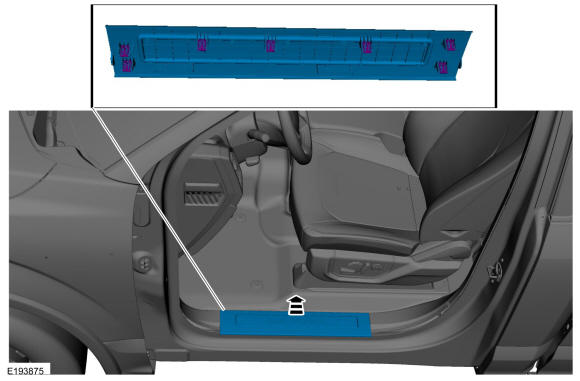

Release the clips and remove the scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY

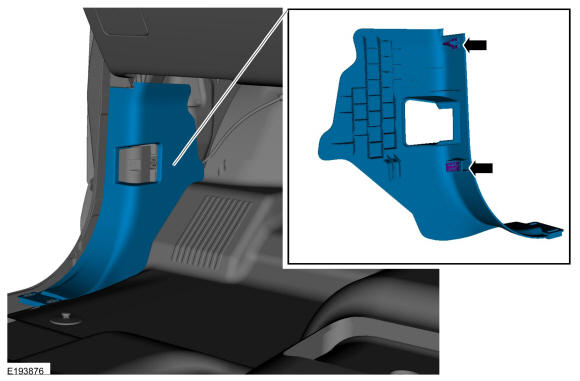

Remove the cowl side trim panel.

Courtesy of FORD MOTOR COMPANY

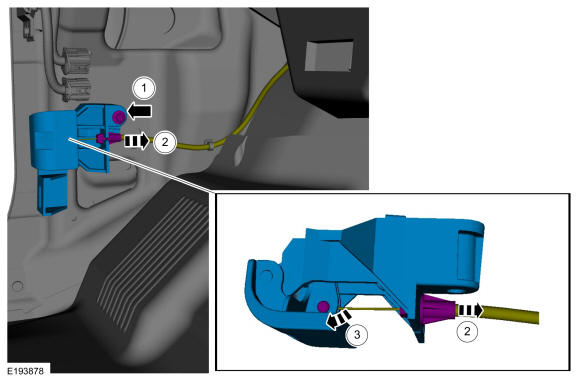

Remove the hood latch release handle.
1. Remove the bolt from the hood latch release handle.
  Torque: 80 lb.in (9 Nm)
2. Remove the hood latch release cable from the hood latch release handle retaining bracket.
3. Remove the hood latch release cable end from the hood latch release handle.

Courtesy of FORD MOTOR COMPANY
