Door Lock Cylinder: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Repair individual door lock cylinders by discarding the inoperative door lock cylinder and building a new door lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys.
  1. Remove the exterior front door handle. Refer to: Exterior Front Door Handle .
  2. Remove the door lock cylinder.

    1. Release the door lock cylinder retaining tabs.
    2. Rotate the door lock cylinder counterclockwise.
    3. Remove the door lock cylinder.

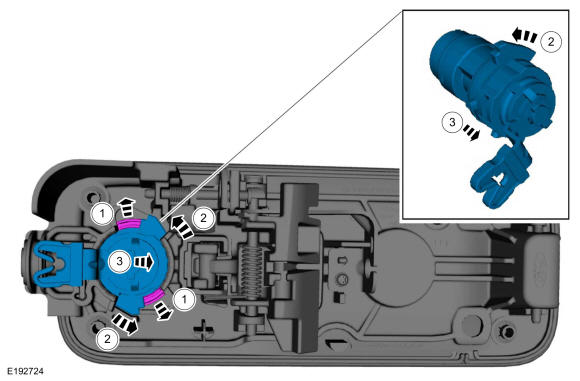

GFD411150Courtesy of FORD MOTOR COMPANY
