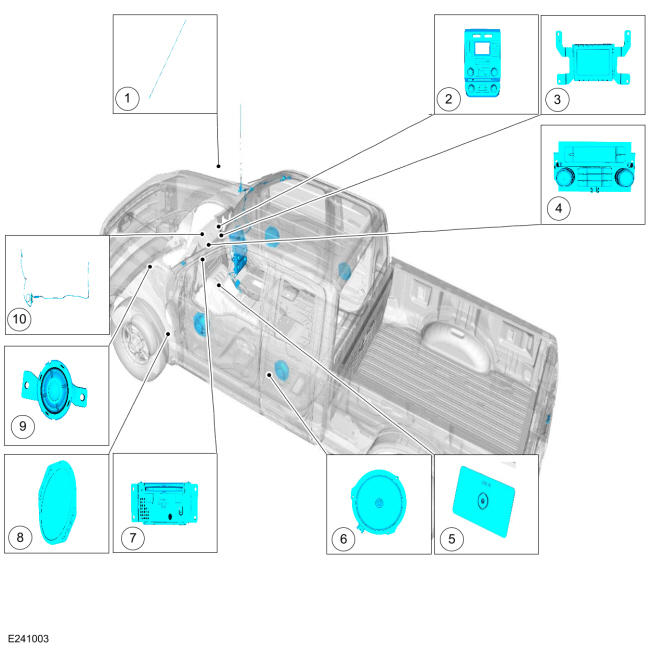

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | AM/ FM antenna and coaxial cable pigtail |
| 2 | FCIM (M/ FM/ CD only) |
| 3 | FCDIM (M/ FM/ CD only) |
| 4 | ACM (M/ FM only) |
| 5 | Audio input jack |
| 6 | LHR door speaker - RHR also shown (if equipped) |
| 7 | ACM (M/ FM/ CD only) |
| 8 | LHF door speaker - RHF also shown |
| 9 | LHF A-pillar tweeter speaker - RHF also shown |
| 10 | AM/ FM coaxial cable jumper |
