Wheel Speed Sensor Ring - Vehicles With: Single Rear Wheels: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

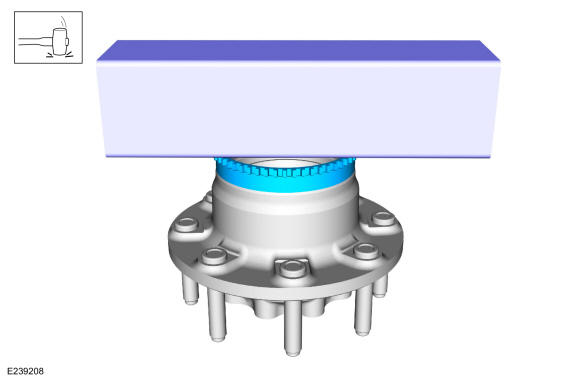

Using a mallet and a wooden block, install the ring by gently and evenly tapping the wood block.. Use the General Equipment: Plastic Mallet. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Install the wheel hub. Refer to: Wheel Hub . Refer to: Wheel Hub .
