Rear Wheel Speed Sensor - Vehicles With: Dual Rear Wheels: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Typical RH wheel speed sensor shown.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

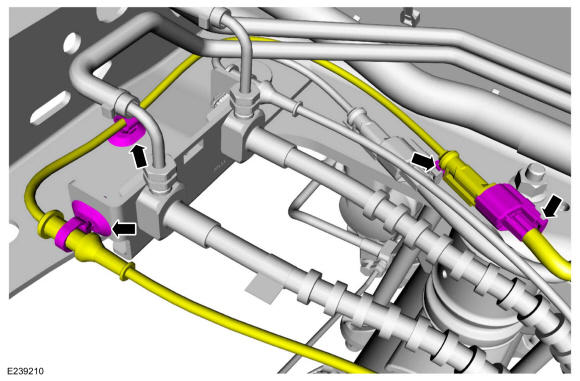

Disconnect the electrical connector and detach the harness retainers

Courtesy of FORD MOTOR COMPANY

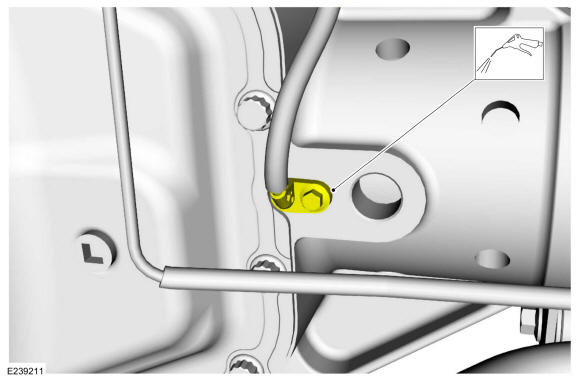

Using compressed air, clean the area surrounding the wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

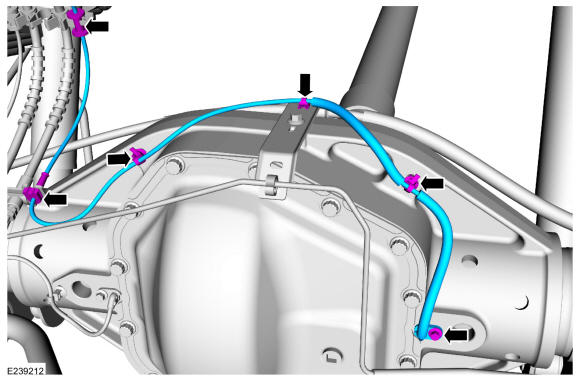

Detach the harness retainers, remove the bolt and the wheel speed sensor.
Torque: 80 lb.in (9 Nm) - Vehicles With: Dual Rear Wheels

Courtesy of FORD MOTOR COMPANY

NOTE: Vehicles With: Dual Rear Wheels
