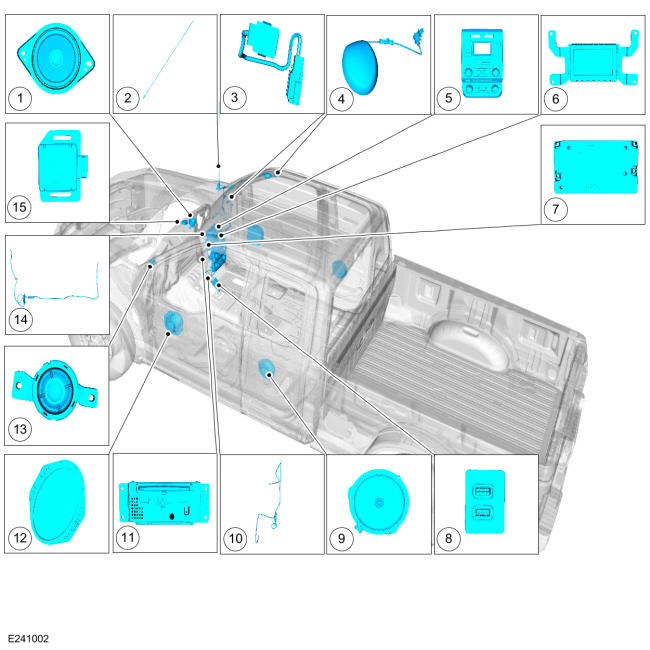

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Instrument panel center speaker |
| 2 |
AM/ FM antenna |
| 3 |
SYNC® microphone |
| 4 |
Satellite antenna |
| 5 |
FCIM |
| 6 |
4.2-inch (107 mm) FCDIM |
| 7 |
APIM |
| 8 |
USB port |
| 9 |
LHR door speaker (if equipped) |
| 10 |
USB cable |
| 11 |
ACM |
| 12 |
LHF door speaker |
| 13 |
LHF tweeter speaker |
| 14 |
AM/ FM coaxial cable |
| 15 |
GPSM |
