Welding symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

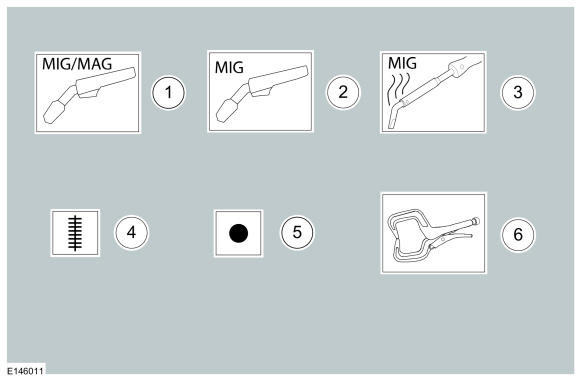

These symbols indicate the type of welding to be used.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Metal inert gas (MIG) / Metal active gas (MAG) welding equipment |
| 2 | -- | Metal inert gas (MIG) welding equipment |
| 3 | -- | Metal inert gas (MIG) brazing equipment |
| 4 | -- | Apply a continuous weld to the specified component |
| 5 | -- | Apply spot welds to the specified component |
| 6 | -- | C-clamp |
