Turn Symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

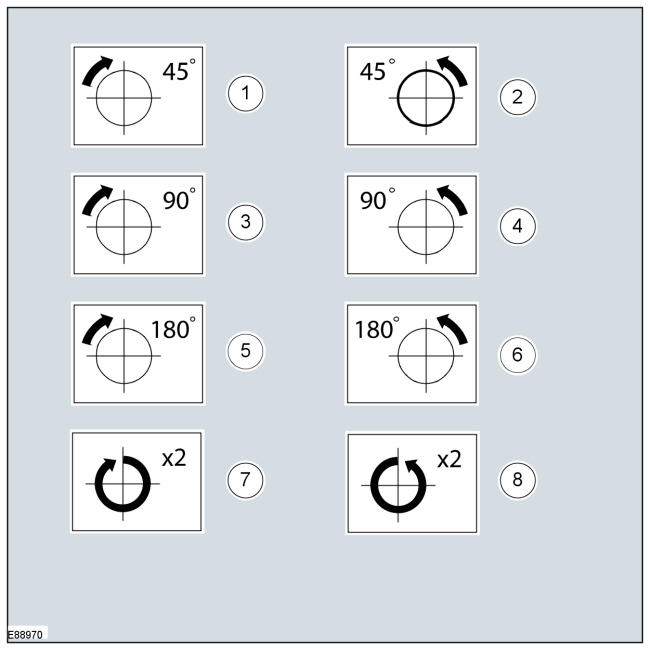

Turn symbols are used to provide further information on the direction or angle of component turns.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Turn the component clockwise through 45 deg. |
| 2 | -- | Turn the component counterclockwise through 45 deg. |
| 3 | -- | Turn the component clockwise through 90 deg. |
| 4 | -- | Turn the component counterclockwise through 90 deg. |
| 5 | -- | Turn the component clockwise through 180 deg. |
| 6 | -- | Turn the component counterclockwise through 180 deg. |
| 7 | -- | Turn the component clockwise through 2 complete turns |
| 8 | -- | Turn the component counterclockwise through 2 complete turns |
