Steering Wheel Symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

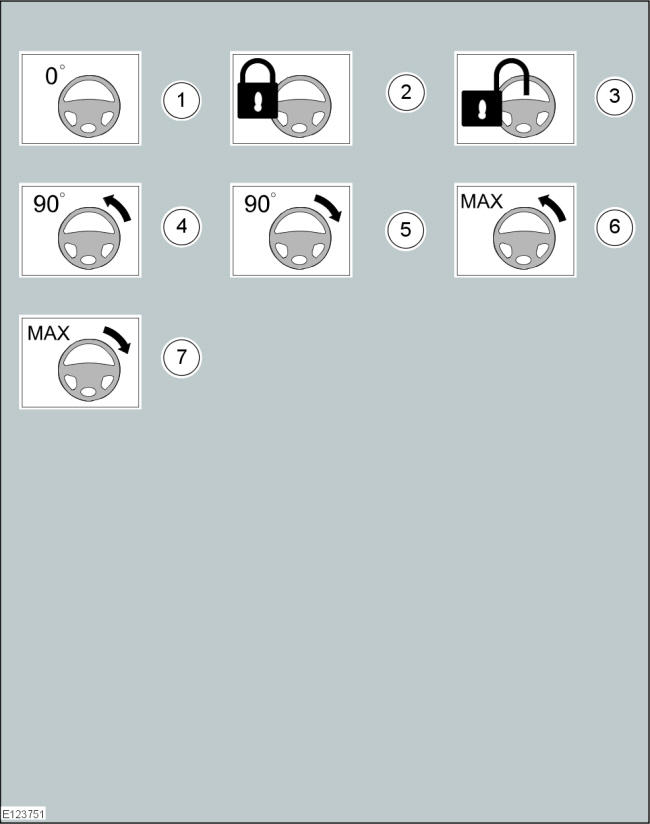

Steering wheel symbols are used to provide further information to a required steering wheel position or steering column lock status.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Steering wheel in straight ahead position |
| 2 | -- | Steering column lock locked |
| 3 | -- | Steering column lock unlocked |
| 4 | -- | Turn the steering wheel to the 90 deg. left position |
| 5 | -- | Turn the steering wheel to the 90 deg. right position |
| 6 | -- | Turn the steering wheel to the left-hand end position |
| 7 | -- | Turn the steering wheel to the right-hand end position |
