Screwdriver symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

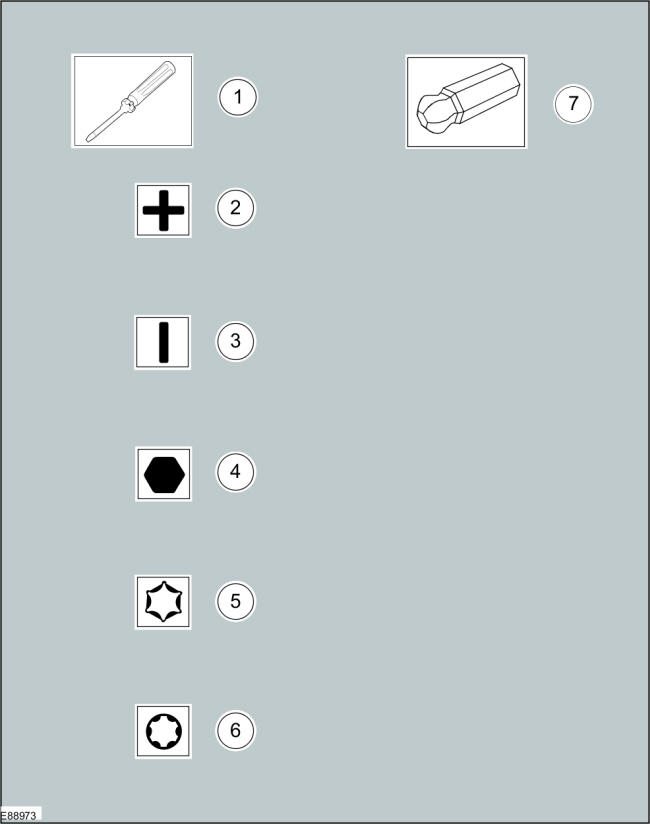

The screwdriver symbols are used to show which screwdriver bit is recommended to carry out a procedure step.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Screwdriver |
| 2 | -- | Cross bladed screwdriver / Cross bladed Bit Socket |
| 3 | -- | Flat bladed screwdriver / Flat bladed Bit Socket |
| 4 | -- | Hexagonal screwdriver / Hexagonal Bit Socket |
| 5 | -- | TORX screwdriver / TORX Bit Socket |
| 6 | -- | Polydrive screwdriver / Polydrive Bit Socket |
| 7 | -- | Ball drive hex bit |
