Pliers symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

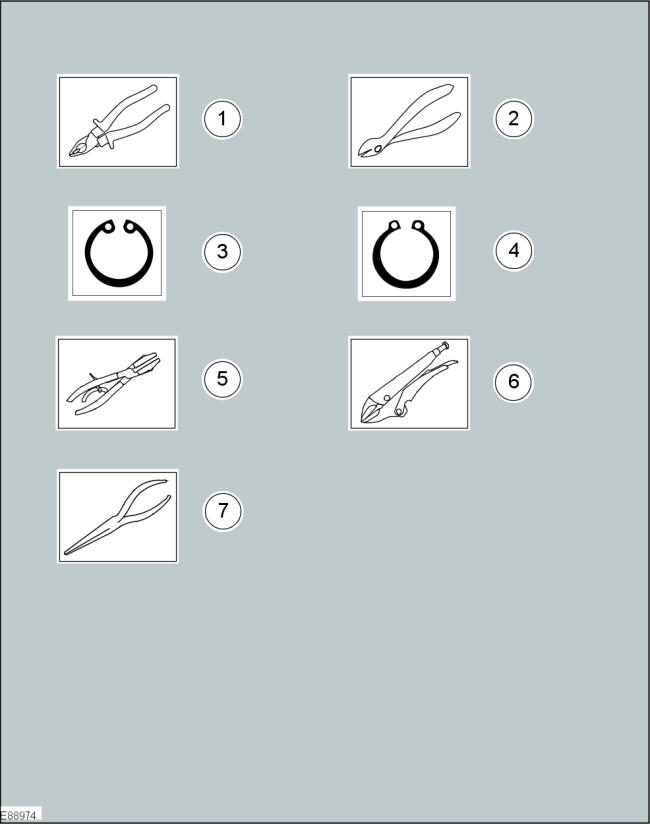

The pliers symbols are used to show which pliers is recommended to carry out a procedure step.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
-- |
Combination pliers |
| 2 |
-- |
Side cutter pliers |
| 3 |
-- |
Securing ring - inner |
| 4 |
-- |
Securing ring - outer |
| 5 |
-- |
Hose clamp pliers |
| 6 |
-- |
Locking pliers |
| 7 |
-- |
Long nose pliers |
